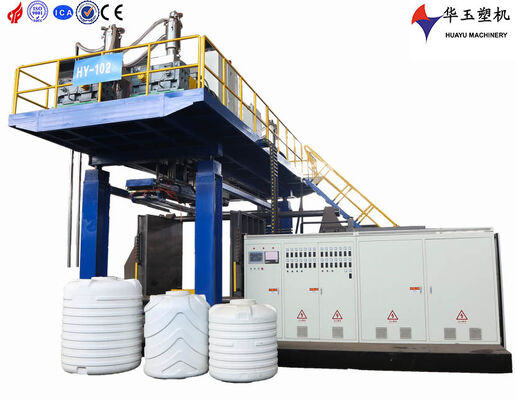

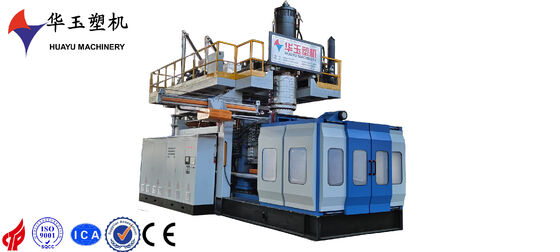

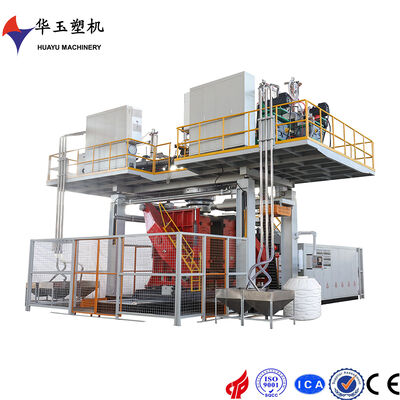

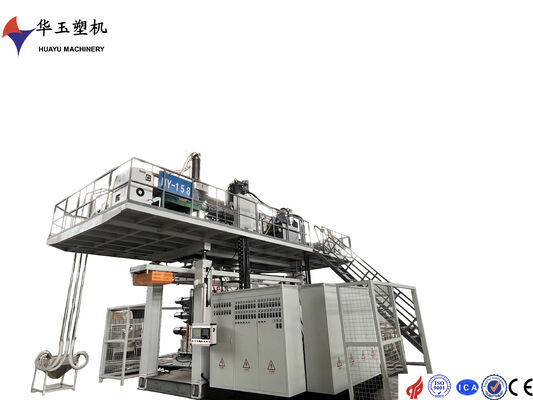

3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
| Menşe yeri | Çin |
|---|---|
| Marka adı | Huayu |
| Sertifika | CE,ISO9001 |
| Model numarası | HYBM-3008 |
| Min sipariş miktarı | 1 set |
| Fiyat | Negotiate |
| Ambalaj bilgileri | Konteynerlere göre |
| Teslim süresi | 4 ay |
| Ödeme koşulları | L/C,T/T |
| Yetenek temini | Ayda 4 set |
Ürün ayrıntıları
| Hoper malzeme | Paslanmaz çelik | Katman | 8 katman |
|---|---|---|---|
| Otomatik | Evet | Kalıp Malzemesi | Alüminyum |
| Kapasite | 3000L | Isıtma yöntemi | Standart İhracat Paketleme |
| Soğutma Su Tüketimi | 0.3MPA*20degree*30 Saat | kova kalınlığı | Çok kalın değil. |
| Garanti | 1 Yıl | Soğutma modu | Hava Soğutmalı |
| Vurgulamak | 3000L IBC blow molding machine,8-layer co-extrusion IBC tank machine,rapid cooling IBC molding machine |
||
Ürün Açıklaması
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine
This high-capacity blow molding machine features 8-layer co-extrusion technology and a 3000L capacity, engineered for rapid production cycles. The integrated water tank cooling system ensures efficient heat dissipation, significantly reducing cycle times while maintaining consistent product quality. Advanced control systems provide precise molding process management, while the robust construction delivers long-term reliability with minimal maintenance requirements.
Blowing and Cooling System Specifications
| Stretching Stroke | Customizable according to product requirements |
| Blow Pin Up/Down Stroke | 600mm |
| Air Seat Stroke | 400mm |
| Maximum Air Pressure | 0.8 MPa |
| Air Consumption | 3 m³/min |
| Cooling Method | Circulating Water System |
| Water Pressure | 0.3 MPa |
| Cooling Water Consumption | 75 m³/h |
Hydraulic System Specifications
| Main Oil Tank Capacity | 1700L |
| Main Oil Pump | Gear Pump 200CC |
| Main Oil Pump Motor | 75 kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 11 kW |
| Features: Servo motor technology for reduced energy consumption, high efficiency operation, and low noise levels | |
