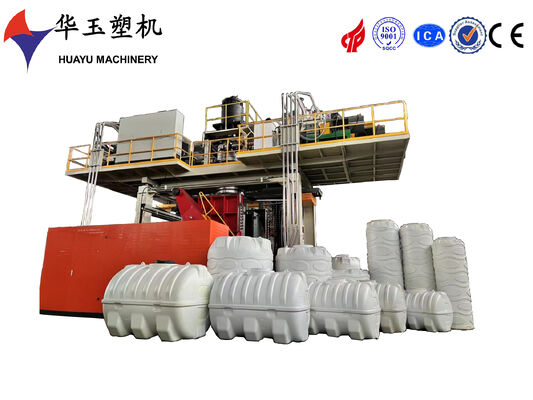

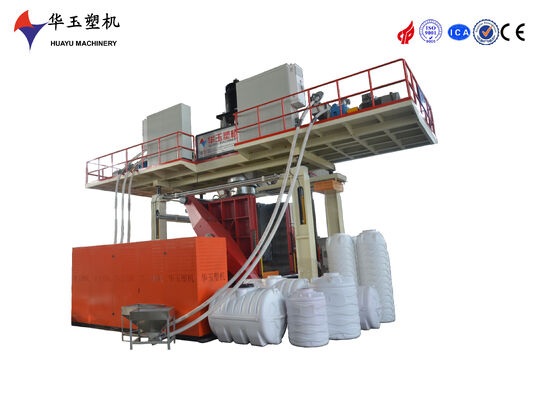

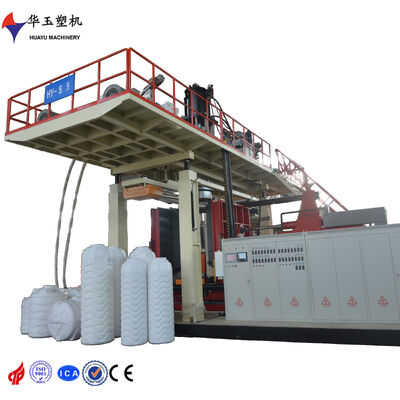

3000L Tri-Layer Drum Blow Molding Machine with Precision Wall Thickness and High-Capacity Output
| Menşe yeri | Çin |
|---|---|
| Marka adı | HUAYU |
| Sertifika | ISO9001 CE |
| Model numarası | HYBM-500-3000L,3katman |
| Min sipariş miktarı | 1 TAKIM |
| Fiyat | 340000 USD |
| Ambalaj bilgileri | konteyner taşıması için birçok parçaya sökülebilir |
| Teslim süresi | 4 ay |
| Ödeme koşulları | T/T,L/C |
| Yetenek temini | 1set 120 gün |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Gerilim | Askıda olması | Toplam Güç | 430KW |
|---|---|---|---|
| Ortalama güç | 290KW | Makine boyutları (U*G*Y) | 9.5*6.5*8.2 |
| Verimlilik | 8-20pcs/s | Vida Çapı | 130/130/mm |
| Vida L/D Oranı | 28 ： 1 | Akü Kapasitesi | 90kg |
| Max. Maks. Mould Size Kalıp Boyutu | 1800*2200mm(G*Y) | Maksimum hava basıncı | 0.8Mpa |
| Hava Tüketimi | 3m3/Dk | ||
| Vurgulamak | Tri-Layer Construction Drum Blow Molding Machine,Precision Wall Thickness 3000L Drum Blow Molding Machine,High-Capacity 3000L Drum Blow Molding Machine |
||
Ürün Açıklaması
3000L Tri-Layer Drum Blow Molding: Where Precision Meets Capacity
Why Choose Our 3000L Tri-Layer Drum Blow Molding Machine?
Advanced Tri-Layer Construction
Engineered for superior durability and structural integrity, ensuring each drum meets the highest standards of quality and performance.
Precision & Efficiency
Delivers consistent wall thickness and precise dimensions, minimizing material waste while maximizing production output.
Uncompromising Durability
Designed to withstand rigorous industrial use, providing long-lasting reliability and reducing maintenance costs over time.
User-Centric Design
Features intuitive controls and a streamlined interface, making operation efficient and accessible for all skill levels.
Industry-Leading Technology
Incorporates cutting-edge extrusion and blow molding techniques to deliver exceptional results in every drum produced.
Eco-Friendly Operation
Optimizes energy usage and reduces environmental impact, aligning with sustainable manufacturing practices.
Versatile Applications
Ideal for producing a wide range of 3000L drums, including those for chemicals, liquids, and bulk storage solutions.
Global Support Network
Backed by a dedicated team of experts providing comprehensive service, training, and technical assistance worldwide.
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L |
| Main Oil Pump | Gear Pump 185CC |
| Main Oil Pump Motor | 57kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic System Specifications
| Main Operation Panel | Touch Screen 12" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
