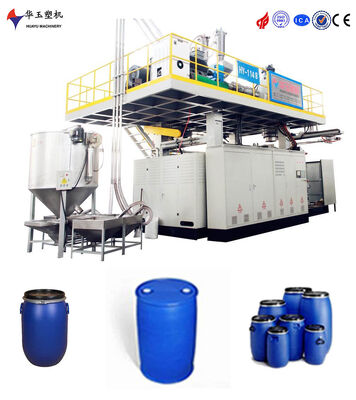

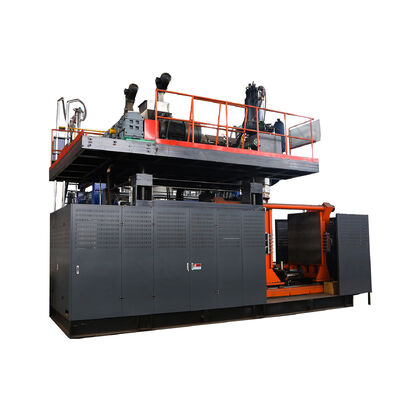

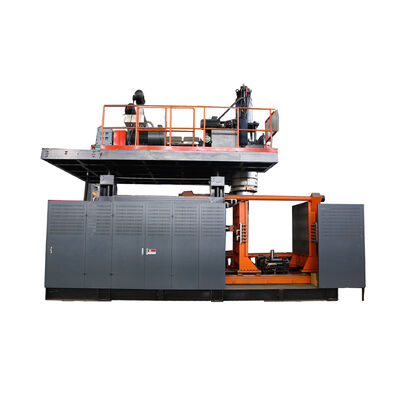

250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
| Menşe yeri | Çin |
|---|---|
| Marka adı | HUAYU |
| Sertifika | ISO9001 CE |
| Model numarası | HYBM-250L-1 |
| Min sipariş miktarı | 1 takım |
| Fiyat | 260000 USD |
| Ambalaj bilgileri | konteyner taşıması için birçok parçaya sökülebilir |
| Teslim süresi | 4 ay |
| Ödeme koşulları | T/T,L/C |
| Yetenek temini | 1set 120 gün |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Vida Çapı | 150MM | L/D | 30: 1 |
|---|---|---|---|
| Vidalı malzeme | 38CrMoAlA，Nitrürleme | Çıkış | 30 adet/saat |
| Hava Temini | 0,8×6（MPa × Dakikada metreküp） | Toplam Güç | 324,5KW |
| Ortalama enerji tüketimi (AEC) | Saatte yaklaşık 180kw | ||
| Vurgulamak | 250L Capacity Drum Blow Molding Machine,30:1 L/D Ratio Blow Molding Apparatus,Energy-Saving Operation Double-Ring Drum Blow Molder |
||
Ürün Açıklaması
250L 1-Layer Double-Ring Drum Blow Molding Machine
Key Advantages
- High Production Efficiency: Fast cycle times and continuous molding capability deliver 50+ 250L double-ring drums per hour, significantly boosting production output for large-scale manufacturing.
- Precision Molding Performance: Advanced servo control system and precise die head design ensure uniform wall thickness and consistent double-ring structural dimensions, meeting strict industrial standards.
- Energy-Saving Operation: Energy-efficient motor and heat recovery technology reduce power consumption by 15-20% compared to traditional machines, cutting long-term operational costs.
- User-Friendly Operation: Intuitive touch screen HMI with pre-set molding parameters minimizes training time and simplifies daily production adjustments.
- Durable Equipment Build: High-strength steel frame and wear-resistant components provide a service life of over 10 years with minimal maintenance.
- Versatile Compatibility: Optimized for 250L 1-layer double-ring drums but adjustable for different plastic materials (HDPE/PP) and similar-sized barrel products.
- Stable Double-Ring Forming: Dedicated mold and air pressure control unit ensure rings have strong load-bearing capacity without deformation, meeting stacking and transportation requirements.
- Low Material Waste: Precision material feeding system and optimized parison control reduce plastic scrap rate to less than 3%, lowering raw material costs.
Energy Configuration Specifications
| Component | Specification |
|---|---|
| Extruder Driving Power | 160kw Siemens Independent Air Cooler |
| Hydraulic Main System Motor Power | 35.6KW Huichuan Servo Motor |
| Wall Thickness Control Motor Power | 7.5 KW |
| Heating Power of Extrusion System | 7 pcs * 7KW/pc |
| Power of Die Heating | 7 pcs * 6KW/pc |
| Air Supply | 0.8*6 (MPa * Cubic meter per minute) |
| Cooling Water Consumption | 0.3*20°*30 (MPa * degree * Cubic meter per hour) |
| Total Power | 324.5KW |
| Average Energy Consumption (AEC) | Approximately 180kw per hour |
This industrial blow molding machine is engineered for high-volume production of 250L double-ring drums, combining precision engineering with energy-efficient operation for optimal manufacturing performance.
