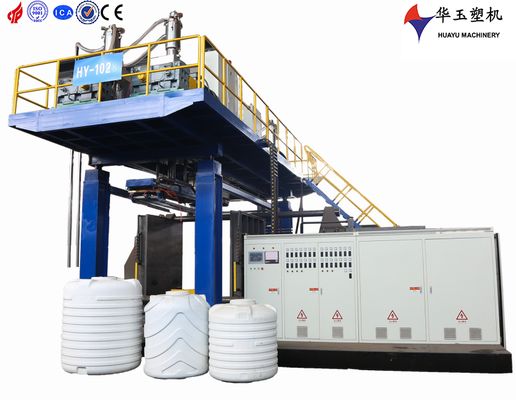

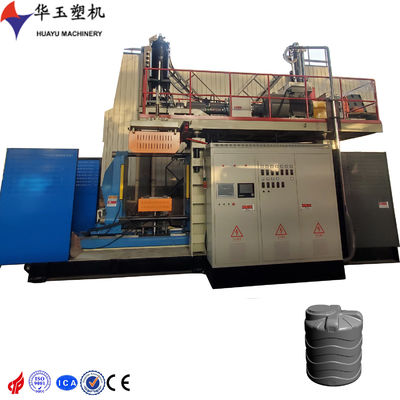

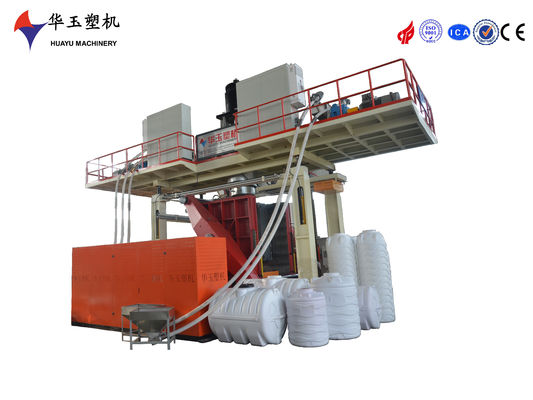

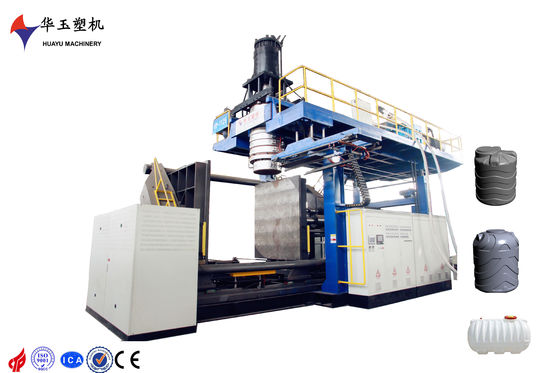

2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production

  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
Menşe yeri Çin
Marka adı HUAYU
Sertifika ISO9001 CE
Model numarası HYBM-500-2000L,12katman
Min sipariş miktarı 1 takım
Fiyat 360000 USD
Ambalaj bilgileri konteyner taşıması için birçok parçaya sökülebilir
Teslim süresi 4 ay
Ödeme koşulları T/T,L/C
Yetenek temini 1set 120 gün

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Gerilim Askıda olması Toplam Güç 648.5kw
Ortalama güç 320kw Verimlilik 10-24pcs/s
Vida Çapı 100mm*7 Vida L/D Oranı 28 ： 1
Akü Kapasitesi 60kg Max. Maks. Mould Size Kalıp Boyutu 1600*2000mm (W*H)
Maksimum hava basıncı 0.8Mpa Hava Tüketimi 2.3m3/dakika
Vurgulamak

12-Layer Co-Extrusion Water Tank Blow Molder

,

2000L Large-Capacity Blow Molding Machine

,

Precision Engineering IBC Tank Blow Molding Machine
Mesaj bırakın
Ürün Açıklaması
2000L 12-Layer Water Tank Blow Molder – Precision Crafted
Core Advantages
  • 12-Layer Co-Extrusion Superiority: Multi-layer structure ensures exceptional barrier performance, pressure resistance and durability, ideal for long-term water storage without leakage or deformation.
  • 2000L Large-Capacity Efficiency: Engineered to mold full-size 2000L water tanks in one single cycle, drastically cutting production time and boosting overall throughput.
  • Precision Engineering for Consistency: High-precision control system guarantees uniform wall thickness across every layer, eliminating defects and ensuring stable product quality batch after batch.
  • Industrial-Grade Reliability: Robust frame and high-quality components are built to withstand heavy-duty continuous operation, minimizing downtime and maintenance costs.
  • Versatile Material Compatibility: Adaptable to a wide range of raw materials including HDPE, PP and recycled plastics, meeting diverse production needs and sustainability goals.
  • User-Centric Intelligent Operation: Intuitive control interface simplifies operation and parameter adjustment, reducing the learning curve for operators and improving production efficiency.
Technical Specifications
Hydraulic System
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 163CC
Main Oil Pump Motor 48kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic System
Main Operation Panel Touch Screen 12"
Control System PLC
Thickness Control Points 200 Points
Temperature Control PLC Module
2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production 0
