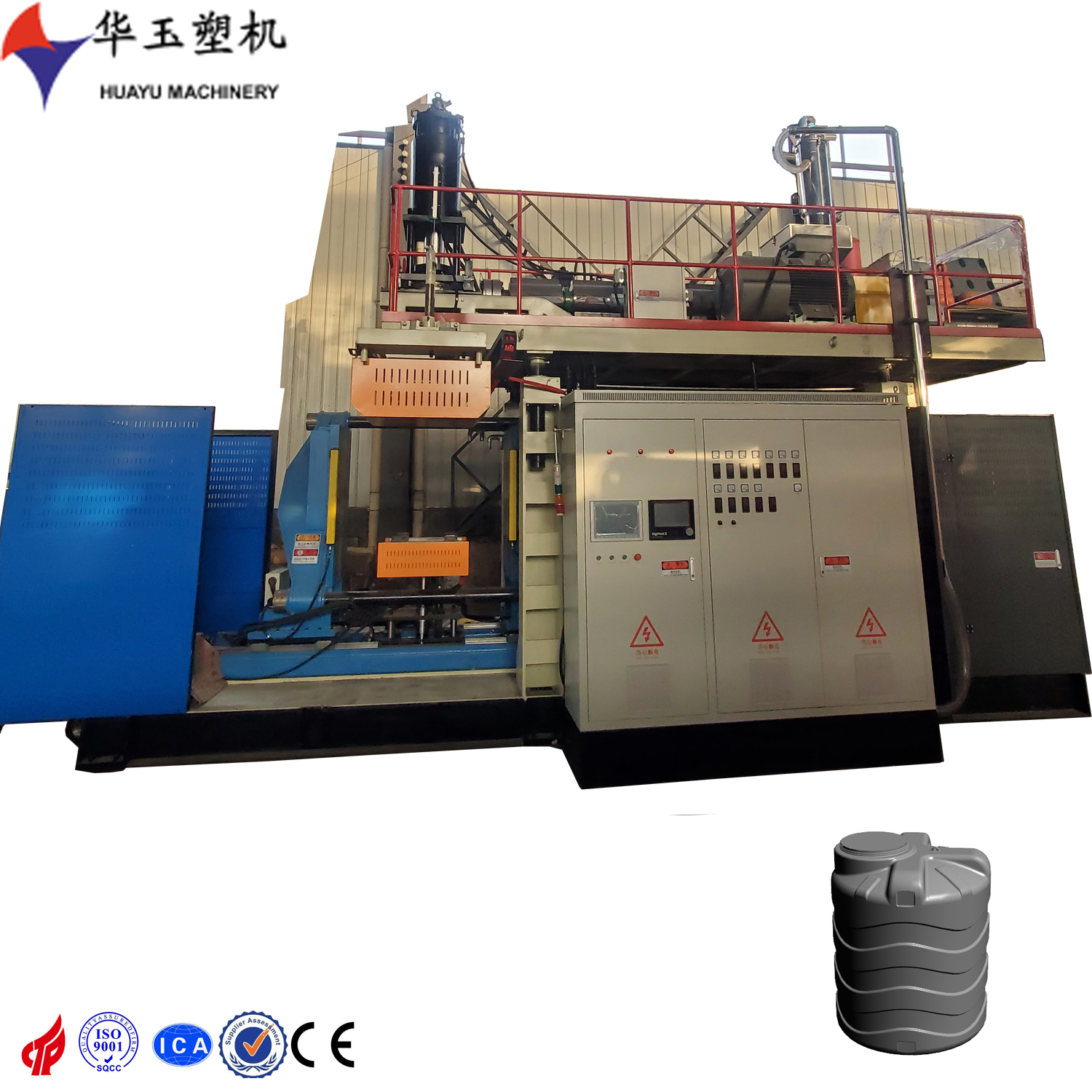

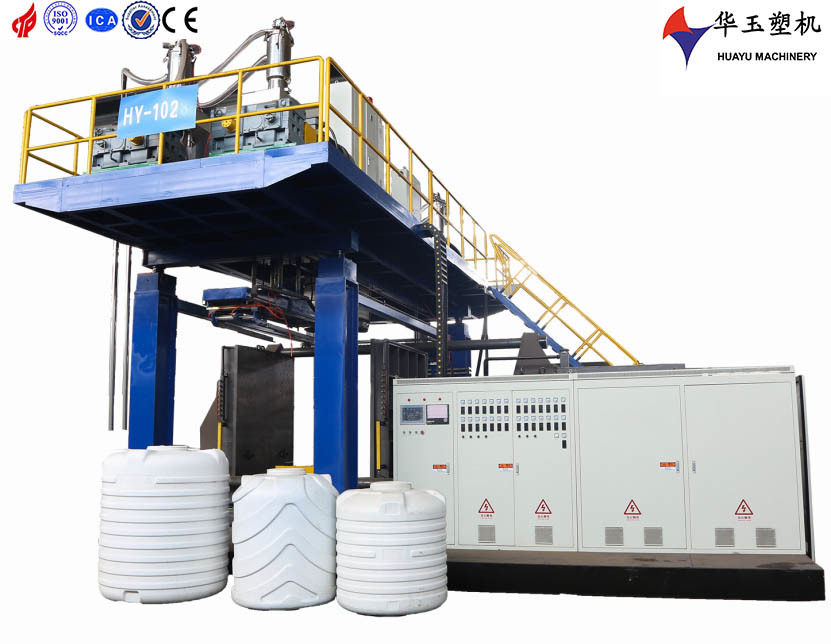

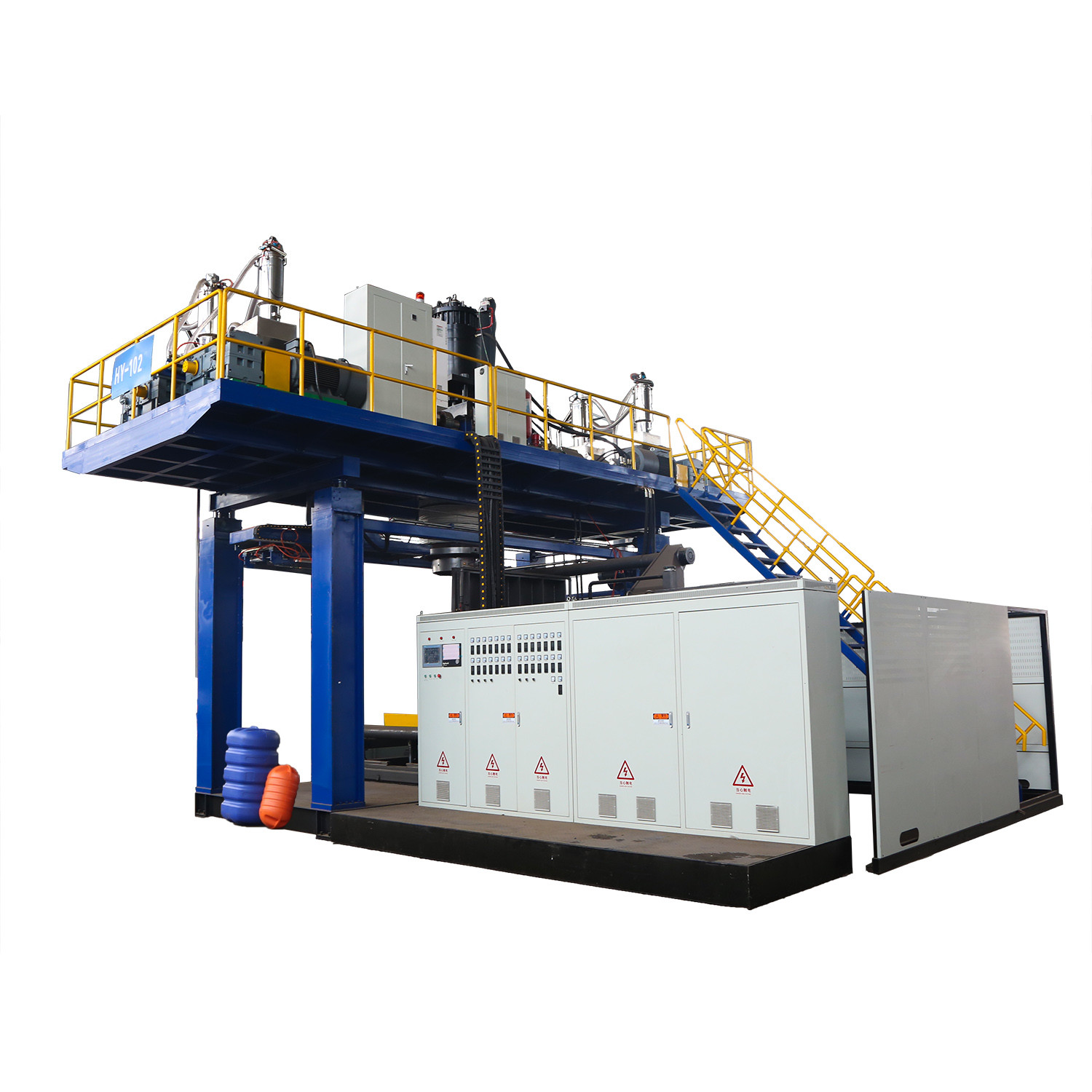

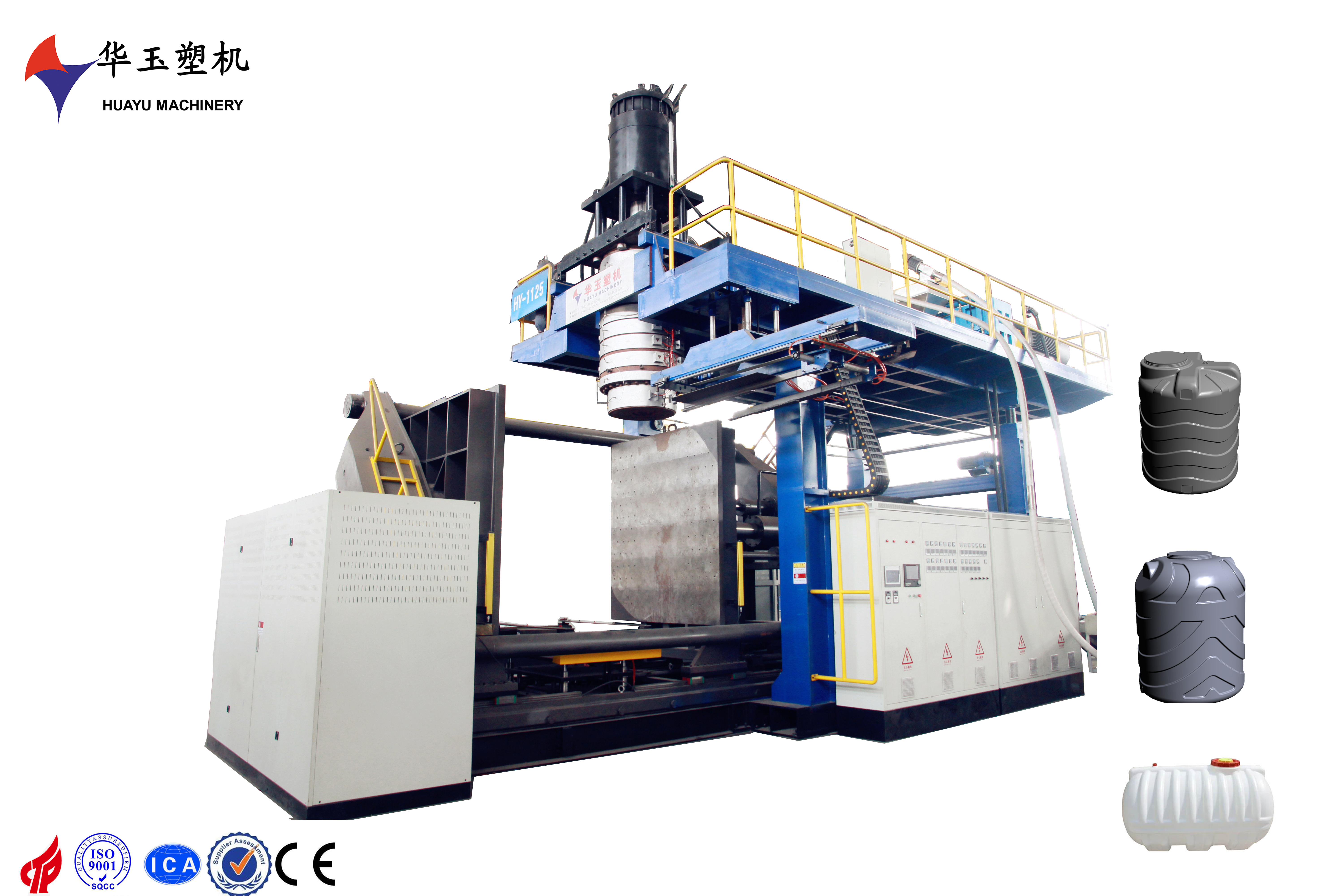

Automatic 5-Layer 1000L Extrusion Blow Molding Machine for Water Tanks
| Menşe yeri | Çin |
|---|---|
| Marka adı | HUAYU |
| Sertifika | ISO9001 CE |
| Model numarası | HYBM-200-1000L,5katman |
| Min sipariş miktarı | 1 takım |
| Fiyat | 260000 USD |
| Ambalaj bilgileri | konteyner taşıması için birçok parçaya sökülebilir |
| Teslim süresi | 4 ay |
| Ödeme koşulları | T/T,L/C |
| Yetenek temini | 1set 120 gün |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Gerilim | Askıda olması | Toplam Güç | 402kW |
|---|---|---|---|
| Ortalama güç | 220kw | Makine boyutları (U*G*Y) | 8*9*6.5 |
| Verimlilik | 16-25 adet/saat | Vida Çapı | 80/80/80/80/80mm |
| Vida L/D Oranı | 28 ： 1 | Akü Kapasitesi | 35kg |
| Kalıp Çapı | Ürünlere göre | Max. Maks. Mould Size Kalıp Boyutu | 1200*1500mm(G*Y) |
| Maksimum hava basıncı | 0.8Mpa | Hava Tüketimi | 1,5M3/dk |
| Vurgulamak | 6-Layer Extrusion Blow Molding Machine,1000L Blow Moulding Machine,Automatic Water Tank Blow Moulding Machine |
||
Ürün Açıklaması
Automatic 5-Layer Extrusion Blow Molding Machine (1000L)
Our 1000L 5-Layer Blow Molding Machine represents the pinnacle of engineering excellence, designed for manufacturers who demand superior quality containers and optimal production performance.
Key Features
- Multi-Layer Construction: 5-layer structure enables strategic material placement for lighter, stronger, and more cost-effective finished products with enhanced performance characteristics.
- High-Capacity Production: Engineered for maximum yield with robust components designed for consistent, high-quality output in demanding 24/7 production environments.
- Advanced Control System: Intuitive operation with cutting-edge control technology providing precise oversight and customization for optimal production orchestration.
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic System Specifications
| Main Operation Panel | Touch Screen 9" |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
This machine features a servo motor system for reduced energy consumption, high efficiency, and low noise operation, providing a significant competitive advantage for your manufacturing operations.
