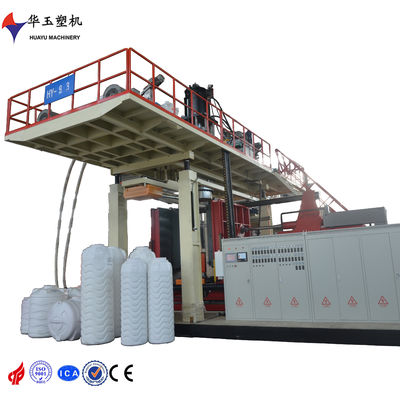

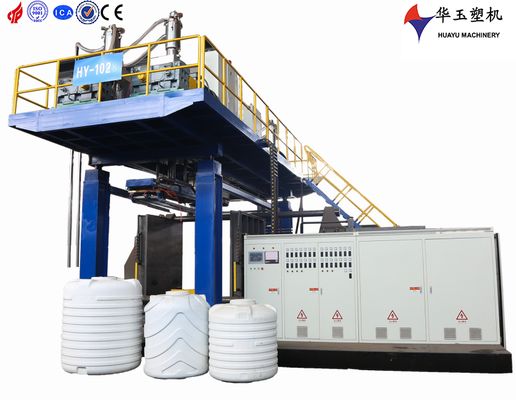

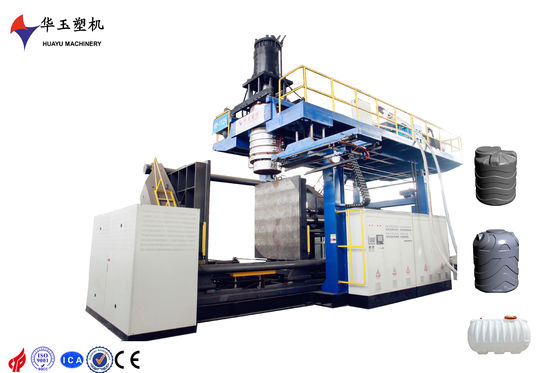

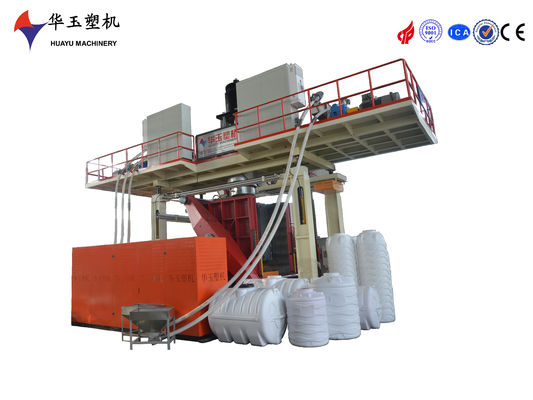

10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production

  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
  • 10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
Menşe yeri Çin
Marka adı HUAYU
Sertifika ISO9001 CE
Model numarası HYBM-2000L -10 katman
Min sipariş miktarı 1 takım
Fiyat 340000 USD
Ambalaj bilgileri konteyner taşıması için birçok parçaya sökülebilir
Teslim süresi 4 ay
Ödeme koşulları T/T,L/C
Yetenek temini 1set 120 gün

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Gerilim Askıda olması Toplam Güç 570kw
Ortalama güç 320kw Makine boyutları (U*G*Y) 12.6*11*7.6
Verimlilik 10-24pcs/s Vida Çapı 100*6mm
Vida L/D Oranı 28 Akü Kapasitesi 60kg
Max. Maks. Mould Size Kalıp Boyutu 1600*2000mm (W*H) Maksimum hava basıncı 0.8Mpa
Hava Tüketimi 2.3m3/dakika
Vurgulamak

10-Layer Water Tank Blow Moulding Machine

,

2000L Blow Molding Solution

,

Intelligent System Blow Moulding Equipment
Mesaj bırakın
Ürün Açıklaması
Advanced 10-Layer 2000L Water Container Blow Molding Solution
Key Advantages
  • 10-layer structure enhances strength and impact resistance for large 2000L tanks
  • Superior barrier effect protects against UV radiation and contaminants to maintain water quality
  • Optimized design enables fast, stable high-volume production
  • Intelligent system reduces energy consumption and supports recyclable materials for eco-friendly operation
  • User-friendly controls and modular components simplify operation and maintenance
Hydraulic System Specifications
Main Oil Tank Capacity 1200L
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 45kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Servo motor technology provides energy efficiency, high performance, and low noise operation
Electronic Control System
Main Operation Panel 12" Touch Screen
Control System PLC (Programmable Logic Controller)
Thickness Control Points 200 Points
Temperature Control PLC Module
10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production 0
