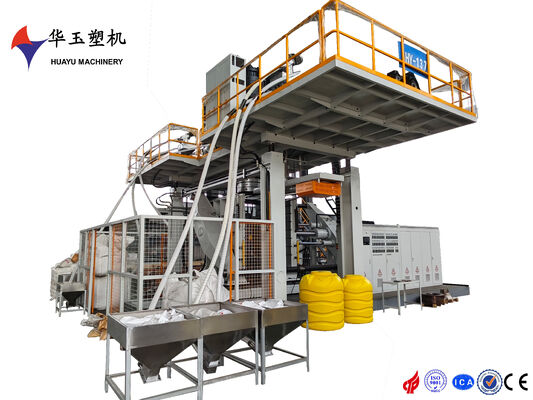

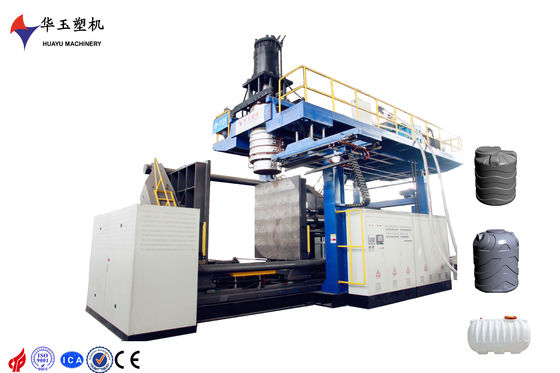

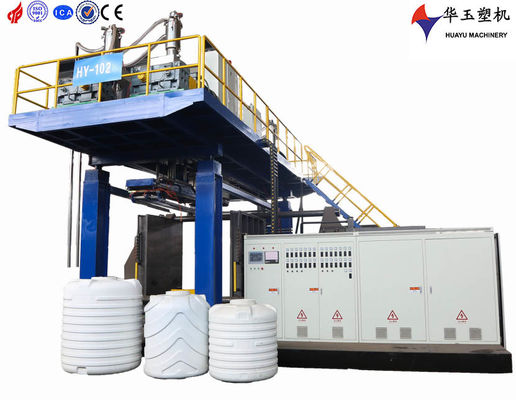

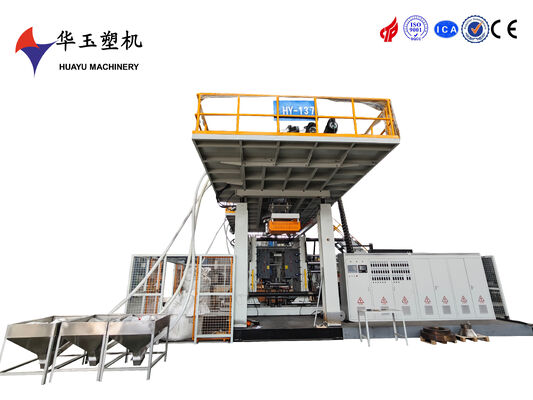

2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production

  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
Menşe yeri Çin
Marka adı HUAYU
Sertifika ISO9001 CE
Model numarası HYBM-8.2200L -6 katman
Min sipariş miktarı 1 takım
Fiyat 280000 USD
Ambalaj bilgileri konteyner taşıması için birçok parçaya sökülebilir
Teslim süresi 4 ay
Ödeme koşulları L/C,T/T
Yetenek temini 1set 120 gün

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Gerilim Askıda olması Toplam Güç 550kw
Ortalama güç 320kw Makine boyutları (U*G*Y) 8,5*9,5*7
Verimlilik 10-24pcs/s Vida Çapı 90 mm
Vida L/D Oranı 28 Akü Kapasitesi 60kg
Max. Maks. Mould Size Kalıp Boyutu 1600*2000mm (W*H) Maksimum hava basıncı 0.8Mpa
Hava Tüketimi 2.3m3/dakika
Vurgulamak

6-layer structure Water Bucket Blow Molding System

,

2200L capacity Water Tank Blow Moulding Machine

,

High-speed continuous production Blow Molding Machine
Mesaj bırakın
Ürün Açıklaması
Efficiency Redefined: 6-Layer 2200L Water Bucket Blow Molding System
Key Advantages
  • 6-layer structure for superior durability and impact resistance
  • Strong barrier performance against moisture and contaminants
  • High-speed continuous production for large-scale orders
  • Layered material allocation reduces production costs
  • Flexible customization for 2200L bucket specifications
Hydraulic System Specifications
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 55kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic Control System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production 0
