Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design
| Menşe yeri | Çin |
|---|---|
| Marka adı | HUAYU |
| Sertifika | ISO9001 CE |
| Model numarası | HYBM-10000L 1 kat |
| Min sipariş miktarı | 1 takım |
| Fiyat | 140000 USD |
| Ambalaj bilgileri | konteyner taşıması için birçok parçaya sökülebilir |
| Teslim süresi | 4 ay |
| Ödeme koşulları | T/T,L/C |
| Yetenek temini | 1set 120 gün |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Kapasite Aralığı | 2000-10000L,1katman | Gerilim | Askıda olması |
|---|---|---|---|
| Toplam Güç | 690kw | Ortalama güç | 390kw |
| Makine boyutları (U*G*Y) | 15*9*11 | Verimlilik | 2-12 adet/saat |
| Vida Çapı | 150/150/mm | Akü Kapasitesi | 300kg |
| Kalıp Çapı | Ürünlere göre | Max. Maks. Mould Size Kalıp Boyutu | 2600*3000mm(G*Y) |
| Maksimum hava basıncı | 0.8Mpa | Hava Tüketimi | 2m3/dk |
| Vurgulamak | 2000-10000L Capacity Water Tank Blow Molding Machine,Precise Molding Control IBC Tank Blow Molding Machine,Energy Efficient Blow Molding Machine |
||
Ürün Açıklaması

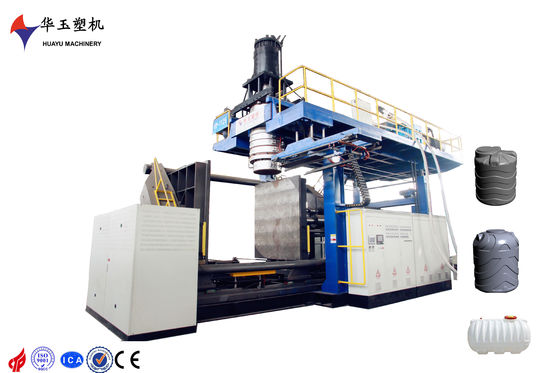

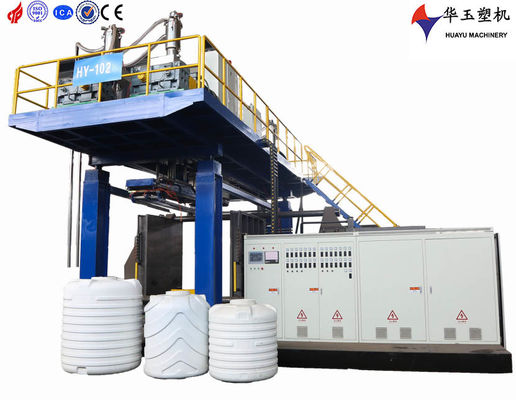

Pro-Grade Water Tank Blow Molding Machine
A specialized industrial machine engineered for producing plastic water buckets and food-grade water containers using advanced blow molding technology. This compact, user-friendly equipment delivers efficient and reliable production performance with precise molding control systems that ensure consistent product quality. The machine produces containers with smooth surface finishes and robust structural integrity that meet strict hygiene and safety standards for food-contact applications.
With flexible adaptability to various bucket designs and food-safe plastic materials, it serves diverse production requirements in household, beverage, and packaging sectors. The optimized operational workflow minimizes disruptions, while ergonomic and energy-efficient features enhance usability and align with sustainable manufacturing principles, making it an indispensable tool for businesses focused on high-quality water container production.
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | 160*2 | |
| Main Oil Pump Motor | 57kW*2 | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 33 | |
| Servo Oil Pump Motor | 15kW |
Electronic Control System
| Main Operation Panel | Touch Screen 9" | |
| Control System | PLC | |
| Thickness Control Points | 100 Points | |
| Temperature Control | PLC Module |
