High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
| Menşe yeri | Çin |
|---|---|
| Marka adı | Huayu |
| Sertifika | CE,TUV,ISO9001，SGS |
| Model numarası | Hybm-yol bariyeri |
| Min sipariş miktarı | 1 set |
| Fiyat | negotiable |
| Ambalaj bilgileri | Makine konteyner taşımacılığı için birçok parçaya ayrılacaktır. |
| Teslim süresi | 4 ay |
| Ödeme koşulları | L/C, T/T |
| Yetenek temini | 40 set/yıl |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Kapasite | Yol Engelliği | Katmanlar | 2 katman |
|---|---|---|---|
| Gerilim | Gereksinim olarak | Renk | Gereksinim olarak |
| Boyut | 7*5.4*5.2 | Toplam güç | 180 kW |
| Vurgulamak | 2 layers blow moulding machine,road barrier blow molding machine 180kw,high speed blow moulding machine for road barriers |
||
Ürün Açıklaması

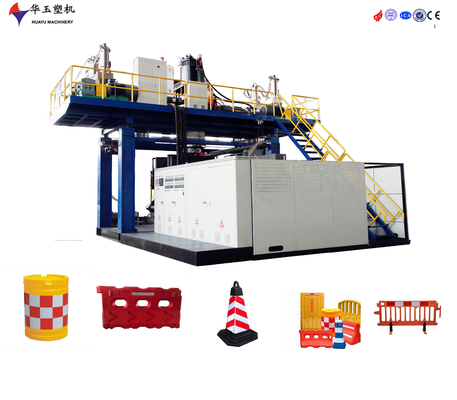

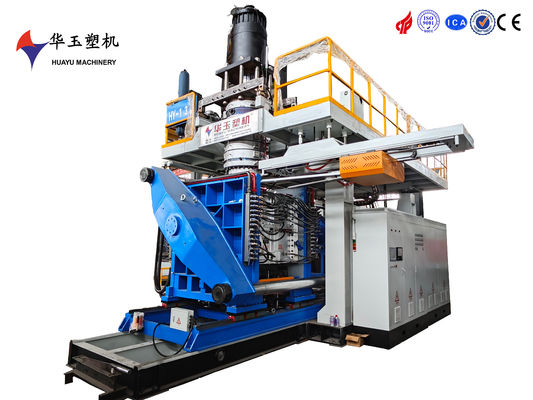

HYBM-Road barrier
1. machine specification
|
road barrier |
2layers |
| Capacity rang | / |
| Machine dimension | 7*5.4*5.2 |
| Average | 100KW |
| Total power | 180KW |
| Accumulator capacity | 18KG |
| E*truder motor | 37KW*2 |
| Screw diameter | 90MM*2 |
| Screw L/D ratio | 30:1 |
| Plasticizing capacity | 200KG/H |
| Platen size | 1000*1200MM |
| Platen distance | 850-2000MM |
| Clamping force | 800KN |
| Servo motor | 28KW |
2.machine details
Huayu patented three-cylinder rapid opening and closing mold locking system
Huayu patented integrated hydraulic station
The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation
High speed screw
3. company advantage
Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!
In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.
Provide customers with technical guidance and continuous optimization of products for life.
